220 Gallon Ultratainer IBC Tote

Ultratainer IBC tanks are reusable shipping, storage, and application containers built for long-term service and use with liquid solutions, semi-solid materials, and granulated type commodities. The Ultratainer IBC is the ultimate IBC solution to improve company durability, safety, and long term reusability. Ultratainers are all-plastic, high-density polyethylene, heavy duty containers with a 1.9 specific gravity rating suitable for up to 15.8 lbs/gal cargo.

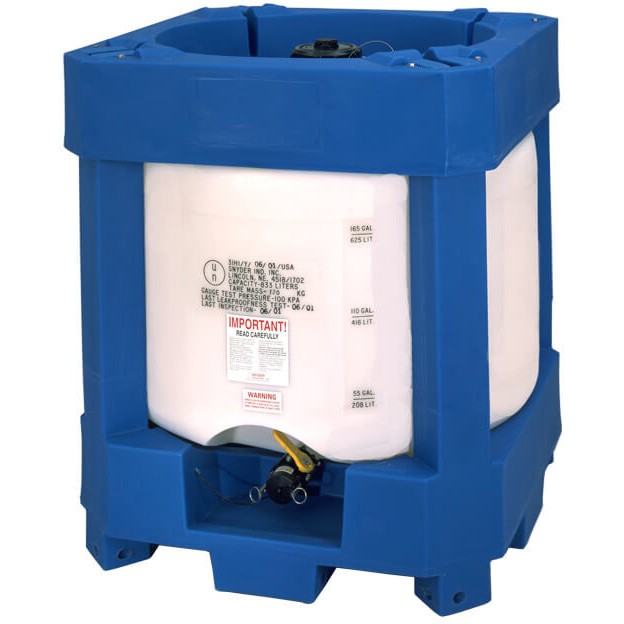

The Ultratainer features a round bottom cylindrical tank within a cubical protection frame. This unique engineering combines the structural strength and benefits of a cylinder container with the organization and handling capabilities of a pallet shaped product. The inner, cylinder-shaped tank is free of any ridges, grooves, or corners that improves ease of cleaning, inspection, recertification, effectively lowering company costs.
Ultratainers provide a superior cost-to-service-life ratio as they are highly reusable, heavy duty work containers with a long and useful lifespan. An Ultratainer IBC is ideally optimized for industries, suppliers, production and distribution companies that rely on their product arriving secure, uncontaminated, and without loss.
Build and Certifications
Ultratainer IBCs are available in standard and Wide Mouth model types in 220 gallon, 275 gallon, and 330 gallon volume storage capacity. The totes are rotational mold manufactured from premium FDA compliant high-density polyethylene (HDPE) plastic for compatibility with many common chemicals, liquids, consumables, and materials frequently transported and handled across modern industries. Ultratainer IBC tanks are ANSI/NSF/CAN 61 certified for food grade materials, consumable quality ingredients, products, and potable grade cargo, applications, and systems.
Ultratainer IBCs are CFR compliant, UN/DOT 31H1 labeled, and IMDG certified containers approved for transit by highway, by rail, and by sea in maritime vessels. They are UN/DOT approved for hazardous and non-hazardous, Packing Group II and III cargo and materials. Ultratainer IBCs can be used to transport, store, and distribute corrosive acids, caustic bases, solvents, oxidizers, alcohols, esters, and amines that are compatible with high-density polyethylene.
Features
Ultratainer IBCs are stackable, feature a built-in top protector with alignment lugs for stability and security when stacking IBCs. The stackable design promotes organization, saves space, improves transportation, storage, handling, and allows for modular setups, integration into applications, and gravity-feed systems.
Ultratainer IBCs have a 46” wide by 46” long pallet-style base with 4-way access channels for maneuvering the container by forklift or pallet jack. Tanks are semi-translucent, feature molded-in volume level gallon markings, and are UV stabilized to prevent sunlight damage for outdoor use and storage.
Standard Ultratainer IBC models feature a 6” polyethylene heavy duty cap with 2” SII vacuum pressure relief vent and two replaceable 2” bungs. Ultratainer IBC tanks feature a domed bottom, recess-protected 2” NPT male quick connect ball valve standard for use with camlock quick connect couplers for optimal drainage and making quick, easy connections.
Ultratainer IBC tanks are manufactured by Snyder Industries in the USA and supported by a 2 year manufacturer’s warranty.
Options

Fold-Away, Retractable Combination Lifting Lugs for Crane and Hoist Capability
Anti-Teeter Crossbars for Improved Stability During Forklift, Pallet Jack Handling
Cleaning Head Assembly
Vacuum Pressure / Relief Valves
Fully Sanitary Connections
Heavy Weight Model Rated for 62 PSI (428 kPa)
Ultratainer IBC Tote Colors: Blue (Standard), Red, Yellow, etc.
Company Personal Branding Option

Brochure

Ultratainer Product Brochure
